The standard choice
A reliable and economical stainless steel for most cleanrooms and general laboratory use.
01 · Stainless steel trolleys For biopharma and GMP

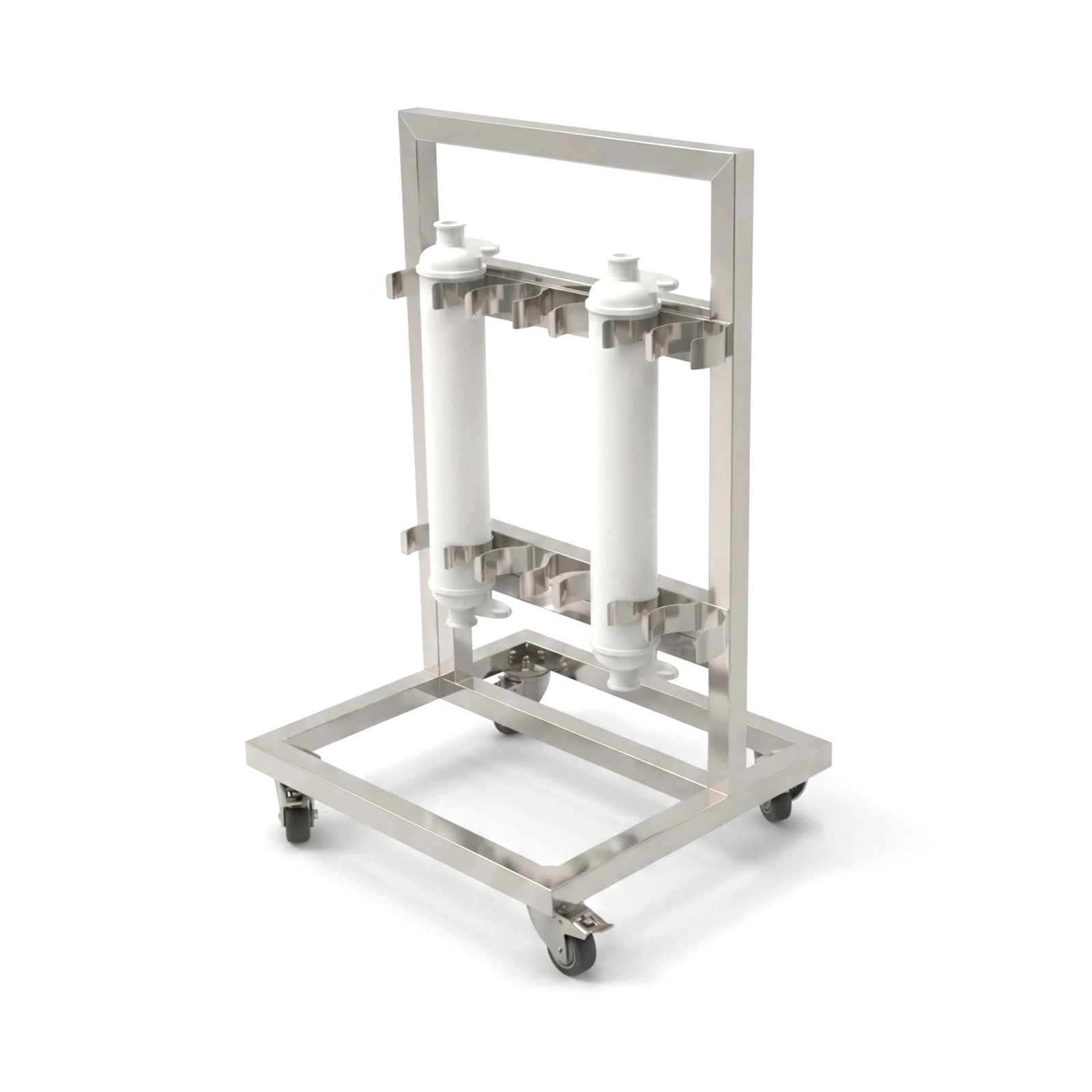

Stainless steel cart for capsule filters
A mobile cart that holds capsule filters (cartridge filter capsules) during sterile filtration or clarification of biological and pharmaceutical products. Open holders keep the filters firmly in place while staying visible, and the construction is fully welded with no sharp edges, suited to frequent cleaning and disinfection.
Price on request
We adapt every piece to your filtration equipment and process. We prepare a quote in 1–2 days.
Custom made
- Material
- AISI 304 / 316L
- Castors
- ESD antistatic
- Filter positions
- Made to measure
- Build
- Fully welded
- Certified materials with traceability (EN 10204 3.1)
- Free choice of filter position count, height and castor type
- Delivery across Slovenia and the EU with technical documentation
02 Product description
Filters held securely, the cart wherever you need it
Capsule (cartridge) filters are widely used in sterile filtration and clarification of biological products, cell and gene therapies and pharmaceutical solutions — often right before filling, or during process fluid clean-up steps. Since they need to stay accessible, visible and easy to swap out during the process, we mount them on a mobile stainless steel cart that can be wheeled straight to the bioreactor or filling line.
The frame is fully welded from stainless tube, with no sharp edges or gaps where particles could collect. Open holders are shaped to the diameter of your filter capsules, so the filters are held firmly during operation while staying accessible for quick inspection and replacement. Quiet ESD antistatic castors allow low-particle movement between cleanroom zones.
Matched to your filtration equipment
Tell us the brand and diameter of the capsule filters you use, the number of filter positions you need (in series or in parallel) and how the tubing runs between them. We match the holders and cart height exactly to that equipment. We prepare a proposal with a 3D model (STEP) before manufacture.
-
01
Holders matched to your filters
Open holders shaped to the diameter of your capsule filters, for a firm yet visible fit.
-
02
Mobility between zones
ESD antistatic castors allow quiet, low-particle movement to the bioreactor or filling line.
-
03
Any number of filter positions
From a single filter to a multi-stage series or parallel configuration, matched to your process.
-
04
Hygienic surfaces
Fully welded, with no gaps or sharp edges, resistant to disinfectants and aggressive cleaning agents.
03 Technical data
Specifications
The values below are a starting point. We define the final specification together, based on the type and number of capsule filters and your process.
| Material | Stainless steel AISI 304 or AISI 316L |
|---|---|
| Surface finish | Mirror polished or brushed (Scotch-Brite) |
| Construction | Fully welded frame made of stainless tube, with no sharp edges |
| Filter holders | Open holders matched to the diameter of your capsule filters; number of positions made to measure |
| Castors | ESD antistatic polyurethane; at least one castor fitted with a brake |
| Connections | Space for connecting tubing and valves between filter positions, as agreed |
| Dimensions | Made to measure – height, width and holder spacing adapted to your equipment |
| Field of use | Sterile filtration and clarification in biopharmaceutical, pharmaceutical and food production |
| Compliance | Designed to GMP and ISO 14644; material traceability EN 10204 3.1 |
04 Materials and surfaces
Choose the right version
We adapt the material and finish to the aggressiveness of the cleaning agents, the required hygiene and your process.
For more demanding environments
Added molybdenum increases resistance to chlorides and aggressive disinfectants, suitable for pharma and sterile zones.
Brushed or polished
A brushed surface (Scotch-Brite) for robust use, or mirror polished (Ra ≤ 0.8) for the highest hygiene.
05 Applications
Where the cart performs best
- Biopharmaceutical manufacturingSterile filtration of cell and gene therapies right before filling.
- Pharmaceutical manufacturingFiltration of bulk solutions and buffers in GMP zones.
- LaboratoriesA mobile filtration station that moves to the workstation.
- Process fluid clarificationRemoving cell debris before further purification.
- Food industryFiltering liquids in hygienic, frequently washed environments.
- CleanroomsLow-particle movement, compliant with ISO 14644 requirements.
06 Related products
From the same category
01 · 01
Stainless steel drawer trolley
A drawer trolley for cleanrooms with antistatic castors and a fully welded construction.
View
03 · 03

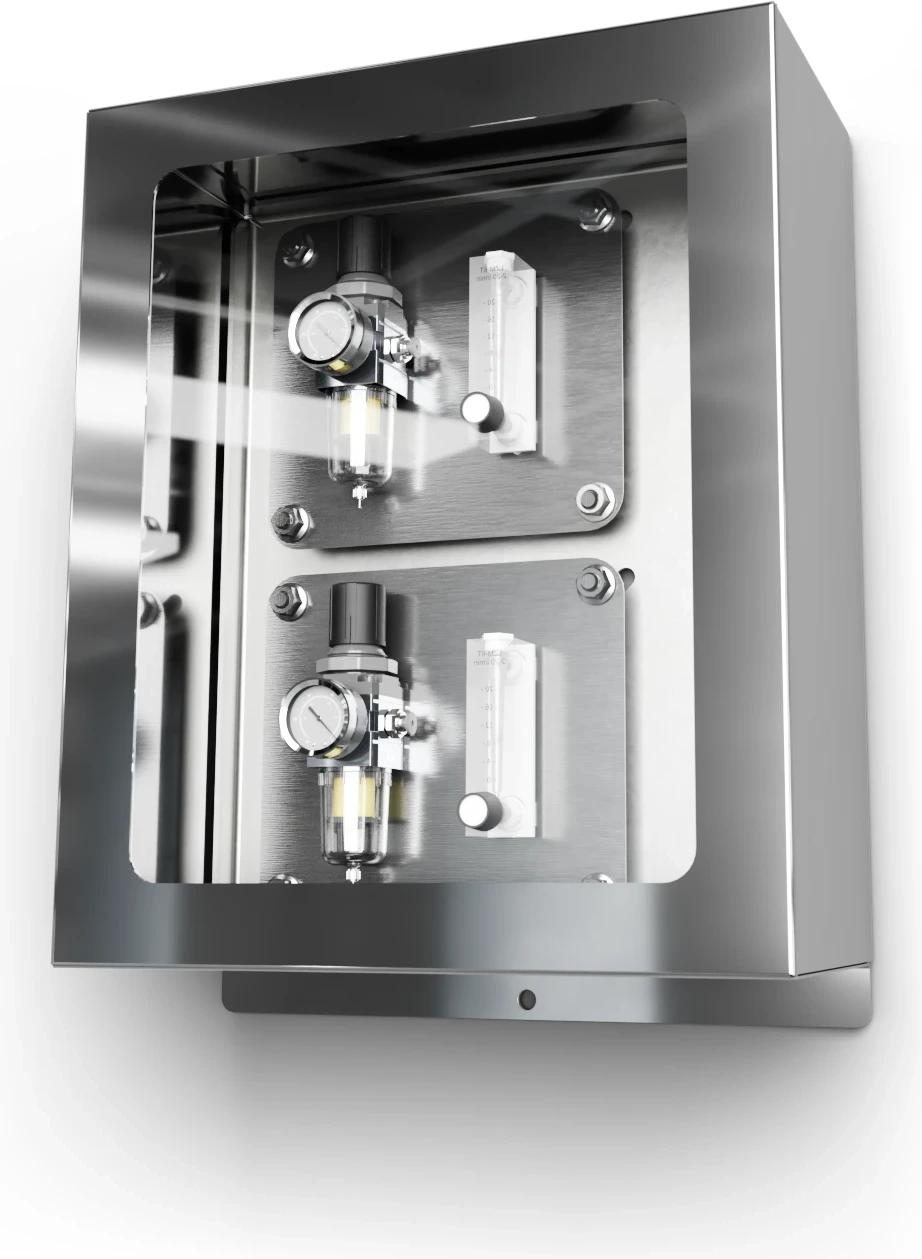

Enclosure for seal systems
A stainless steel mounting bracket with a protective glass cover for pressure regulators and flow meters.
View
03 · 02

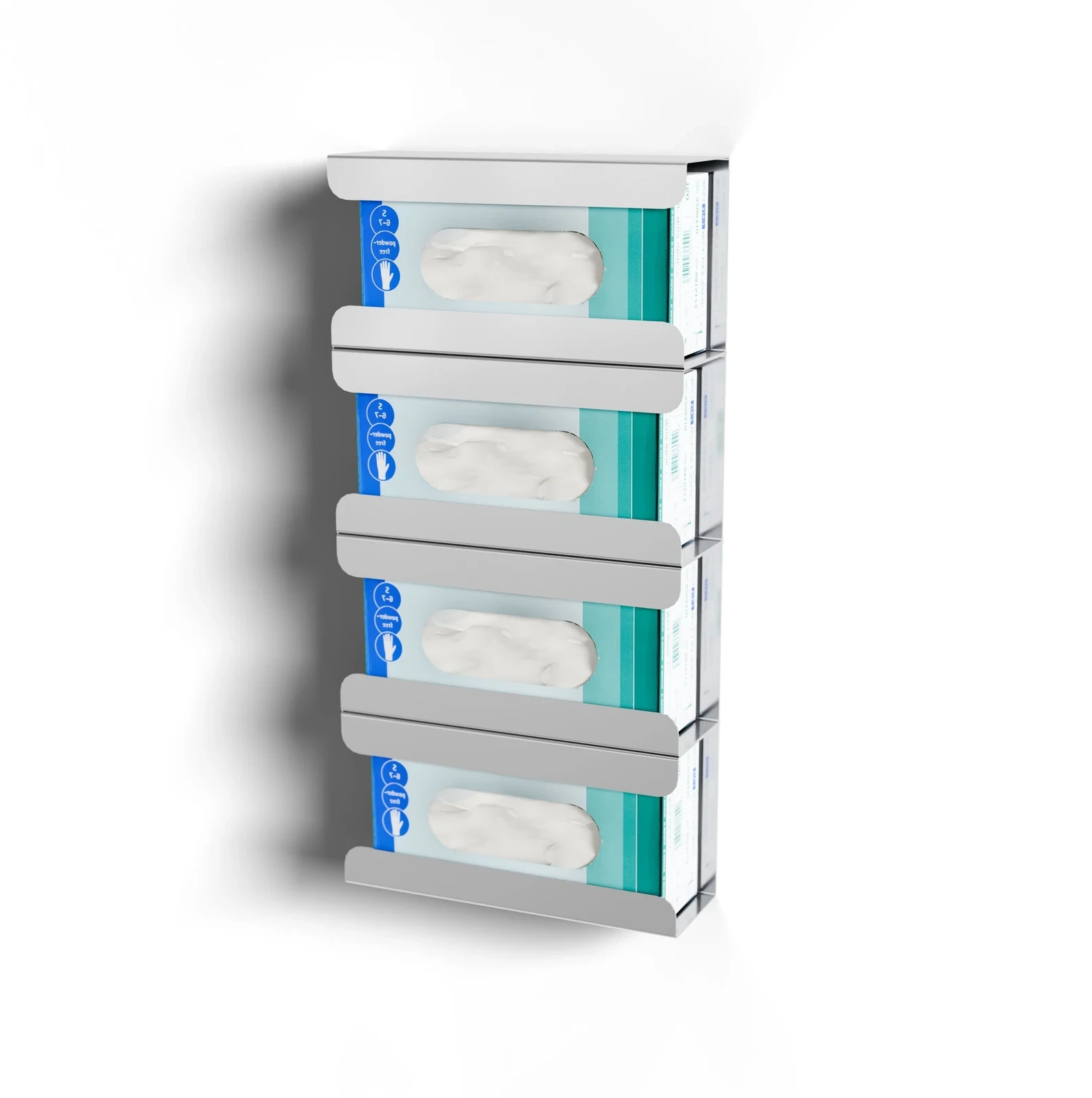

Wall-mounted glove box holder
